Rain Bird US-415VAN 4 inch Pop-Up Sprinkler Body with 15VAN Nozzle

-25%
 Rain Bird US-415VAN 4 inch Pop-Up Sprinkler Body with 15VAN Nozzle
3.39
Discount: 2.54
Begin: 01/10/2020   While stocks last!
Öntözési sugár:
Rain Bird US-415VAN 4 inch Pop-Up Sprinkler Body with 15VAN Nozzle, Spacing:15 VAN Series: 12 to 15 feet (3;7 to 4;6 m)
  • RAIN BIRD UNI-SPRAY SPRINKLER
    The Rain Bird UNI-Spray™ is designed for those applications where flexibility and convenience are primary considerations. These reliable; compact spray heads are shipped with or without pre-installed Variable Arc Nozzles (VANs) that are adjustable from 0° to full circle operation; saving hours of installation time; effort and money.

    • Pressure-activated, wiper seal prevents excessive flow-by and water waste. Keeps debris from entering upon retraction.
    • Durable stem ratchet allows for quick and easy nozzle pattern alignment.
    • Internal parts removable from the top of the sprinkler for easy servicing.
    • Small exposed cover makes the unit virtually invisible for more attractive landscapes.
    • Rugged cover and body provide durability in high pressure and surge conditions.
    • Plastic and stainless steel materials resist corrosion.

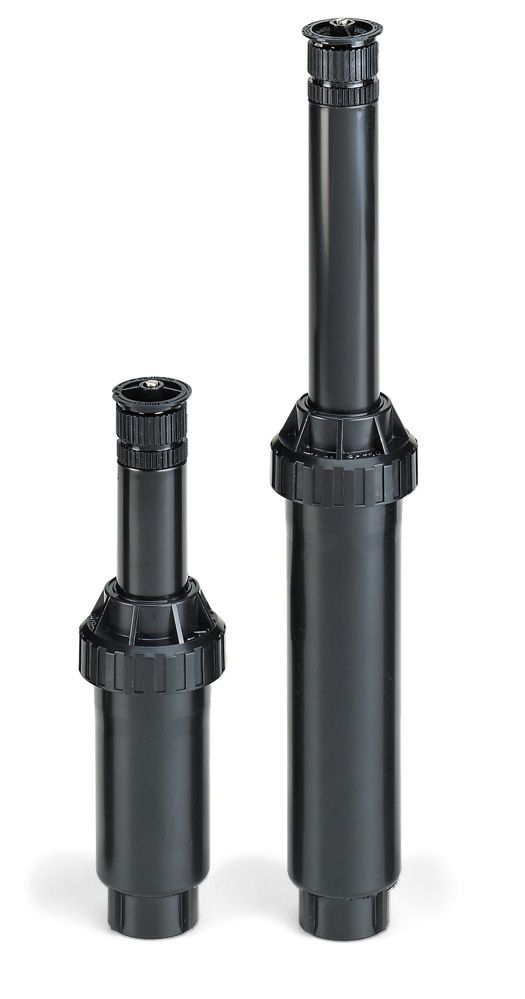

    • Available in popular 2-inch (5,1 cm) and 4-inch (10,2 cm) models to provide unobstructed watering of today’s taller turf grass varieties.
    • VAN nozzle and screen are easily removable for flushing.
    • UNI-Spray™ accepts all Rain Bird® Series nozzles and accessories, which simplifies inventory management.

    Specifications
    Spacing: 15 VAN Series: 12 to 15 feet (3;7 to 4;6 m)
    • Pressure: 15 to 70 psi (1,0 to 4,8 bar)
    • Optimum Pressure: 30 psi (2 bar)
    • Adjustable nozzle arc range: 0° - 360°
    • Flow-by: 0 at 10 psi (0,75 bar) or greater; 0.20 GPM (0,04 m3/h; 0,01 l/s) otherwise

    Dimensions
    • 1/2" (15/21) NPT female threaded inlet
    • Body height:
    o US-200: 3 3/4" (9,5 cm)
    o US-400: 5 7/8" (15 cm)
    • Exposed surface diameter: 1 1/4" (3,2 cm)
  • Öntözési sugár
    4,6m
    Article No.
    RBUNI0415
